cardan shaft

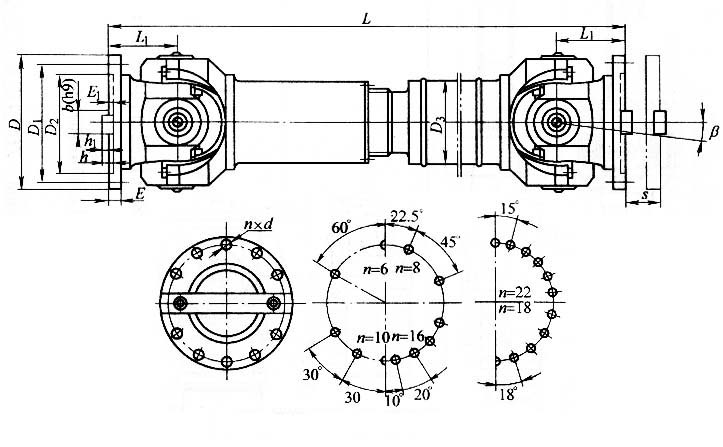

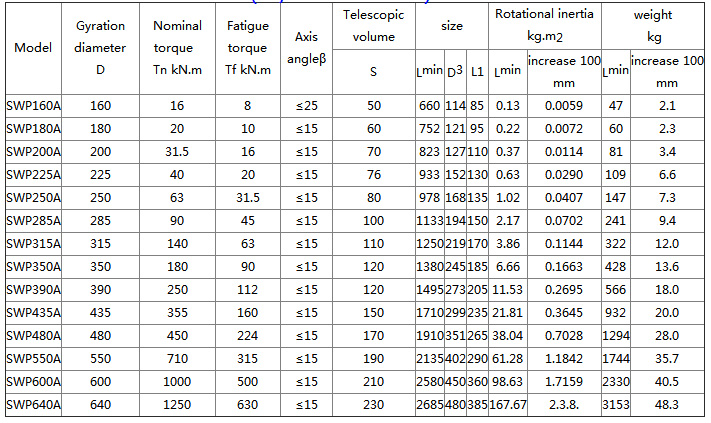

SWP-A has telescopic long universal coupling
Time:18-09-20
cardan shaft
SWP-A has telescopic long universal coupling
Time:18-09-20
|
SWP type universal coupling, cross shaft bearing seat is split type, considering that the bearing is a wearing part in the universal joint, the bearing gland is made into a split, in order to facilitate the replacement of the bearing. However, the gland bolts are easy to loosen. According to the structure of the intermediate shaft and the connection form of the shaft fork, there are 7 types: SWP A type (with telescopic long type) cross shaft universal joint, B type - telescopic short universal joint, C type - no telescopic short universal joint, D type - no telescopic long universal joint, E type - with telescopic double flange long universal joint, F type - large Telescopic long universal coupling, G type - with telescopic ultra-short universal coupling. Type A - has a telescopic length; Type B - has a telescopic short type; Type C - no telescopic short type; D type - no telescopic long type; E type - has a telescopic double flange length; F type - large telescopic long type; ZG type - dressing through type FG type--reverse through type |
